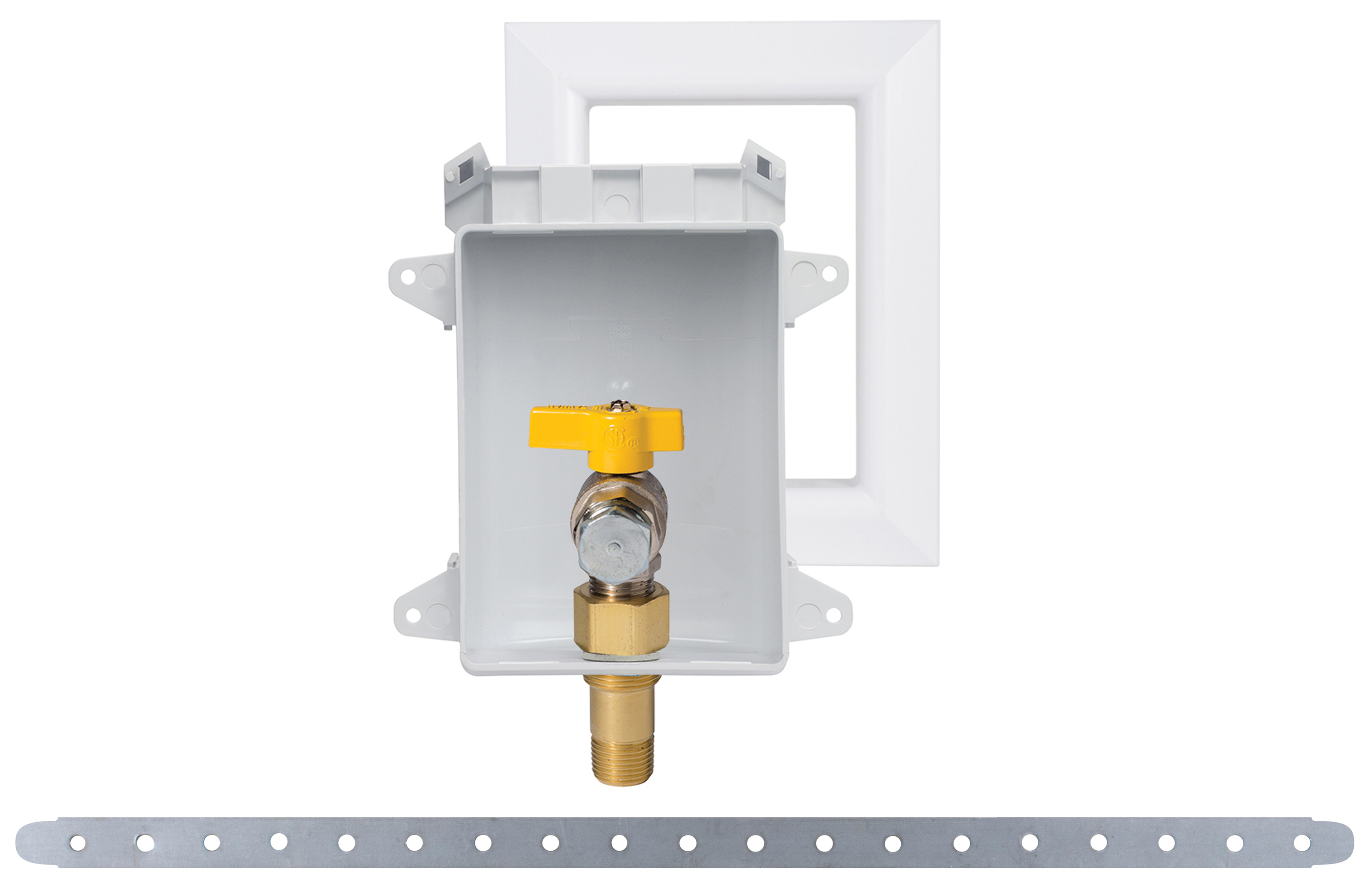

With Frame - Leaded - 1/2'' FIP Valve For CSST Connection, Bagged
Gas Service - FIP Outlet
OxBox™ Gas
Fire-Rated Outlet Box
- • CSST box requires box adapter from CSST manufacturer
- • ABS boxes mount securely to stud or between studs.
- • Listed by Warnock Hersey to meet: ASTM E-814, CAN/ULC S115.
- • Prop 65 WARNING
- • Valve is certified to ANSI Z21.15-1997 / CGA 9.1-M97.
- • Patent #7,360,553 & #7,735,511
- • Quarter-turn ball valve for easy, accessible operation.
- • IAPMO PS - 54, ASTM - E119, CAN/ULC - S101, UL - 1479, ASTM - E814, CAN/ULC - S115
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| With Frame - Leaded | |||||
| ▶ | BI | 10 | 10 | ||
| BI | 10 | 10 | |||
| BI | 10 | 10 | |||
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | FIP |
| Connection 2 Size | 1/2 IN |
| Connection 2 Type | NPT |
| Fire-Rated? | Yes |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
