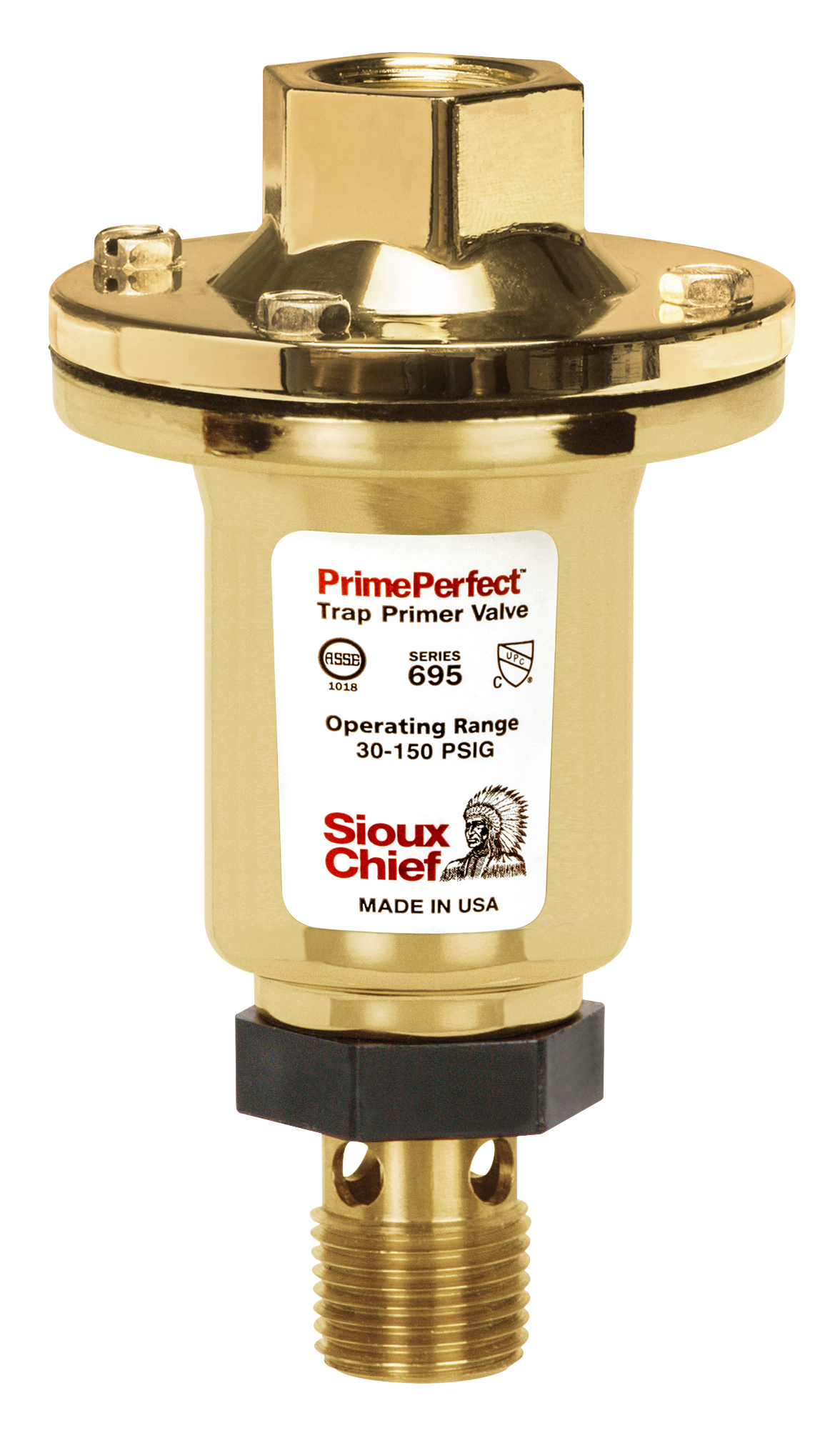

Mechanical Trap Primer Valve - 1/2'' FIP × 1/2'' MIP
Trap Primers
PrimePerfect™
- • DO NOT use thread sealant compound
- • For use in accessible locations only
- • Can service up to eight traps using splitter and distributors.
- • Mechanically activates to replenish water in floor drain traps to prevent the escape of sewer gases.
- • Water release is factory set to 0.25oz per activation - no field adjustment necessary.
- • Activates with a 10 PSIG pressure drop at operating pressure of 30–150 PSIG.
- • Debris screen with large openings to prevent clogging from sediment and debris.
- • Prop 65 WARNING
- • ASSE - 1018
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Mechanical Trap Primer Valve | |||||
| ▶ | BI | 1 | 24 | ||
| Certification | ASSE 1018 |
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | FIP |
| Connection 2 Size | 1/2 IN |
| Connection 2 Type | MIP |
No finish installation documents available for this product.
