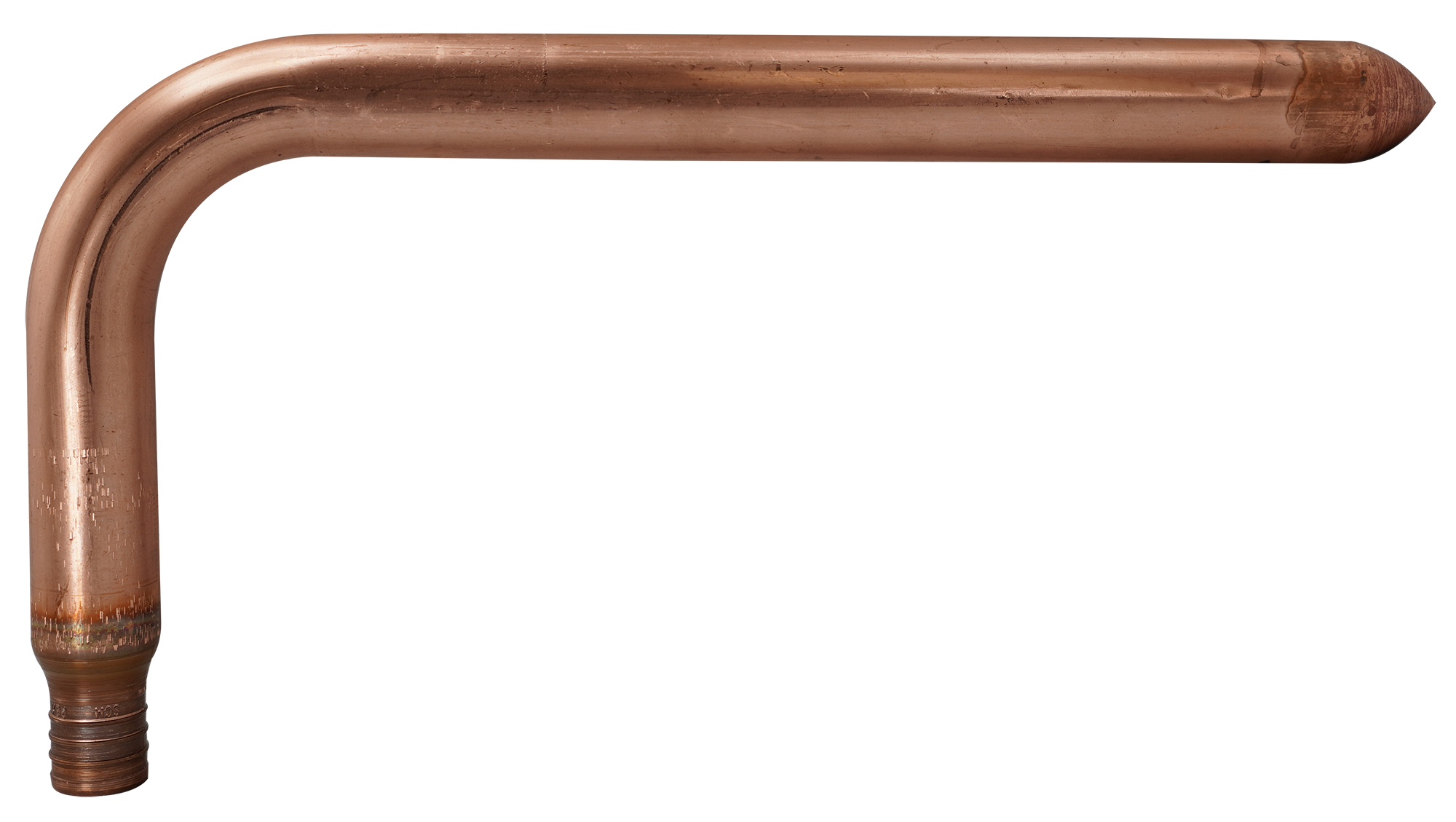

630X4612

630X4612

Standard - 1'' F1807, 6'' × 12''

ASTM F1807 Preformed Copper & Valves

F1807 Stub Out Elbow

• One-piece solid copper
• Tube stops formed into each fitting
• Combines versatility of copper stub outs with easy installation of PEX system
• Type L copper tube - Accepts sweat, push-fitting and compression valves
• ASTM - F1807, CSA - B137.5, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61

Product Information

	Item No	Description	Pkg	Min Qty	Case Qty
Standard
	630X148	3/8'' F1807, 3-1/2'' × 8''	B	50	50
	630X2138	1/2'' F1807, 13'' × 8''	B	50	50
	630X2412	1/2'' F1807, 3-1/2'' × 12''	B	50	50
	630X246	1/2'' F1807, 3-1/2'' × 6''	B	50	50
	630X248	1/2'' F1807, 3-1/2'' × 8''	B	50	50
	630X248PK	1/2'' F1807, 3-1/2'' × 8''	CI	6	6
	630X3136	3/4'' F1807, 13'' × 6''	B	50	50
	630X3412	3/4'' F1807, 4-1/2'' × 12''	B	50	50
	630X348	3/4'' F1807, 4-1/2'' × 8''	B	50	50
▶	630X4612	1'' F1807, 6'' × 12''	B	25	25
	630X468	1'' F1807, 6'' × 8''	B	25	25

Connection 1 Size	1 IN
Connection 1 Type	F1807
Connection 2 Size	1 IN
Connection 2 Type	Closed
Height	6 IN
Length	12 IN
Square Strap?	No
Type	Stub Out Elbow
