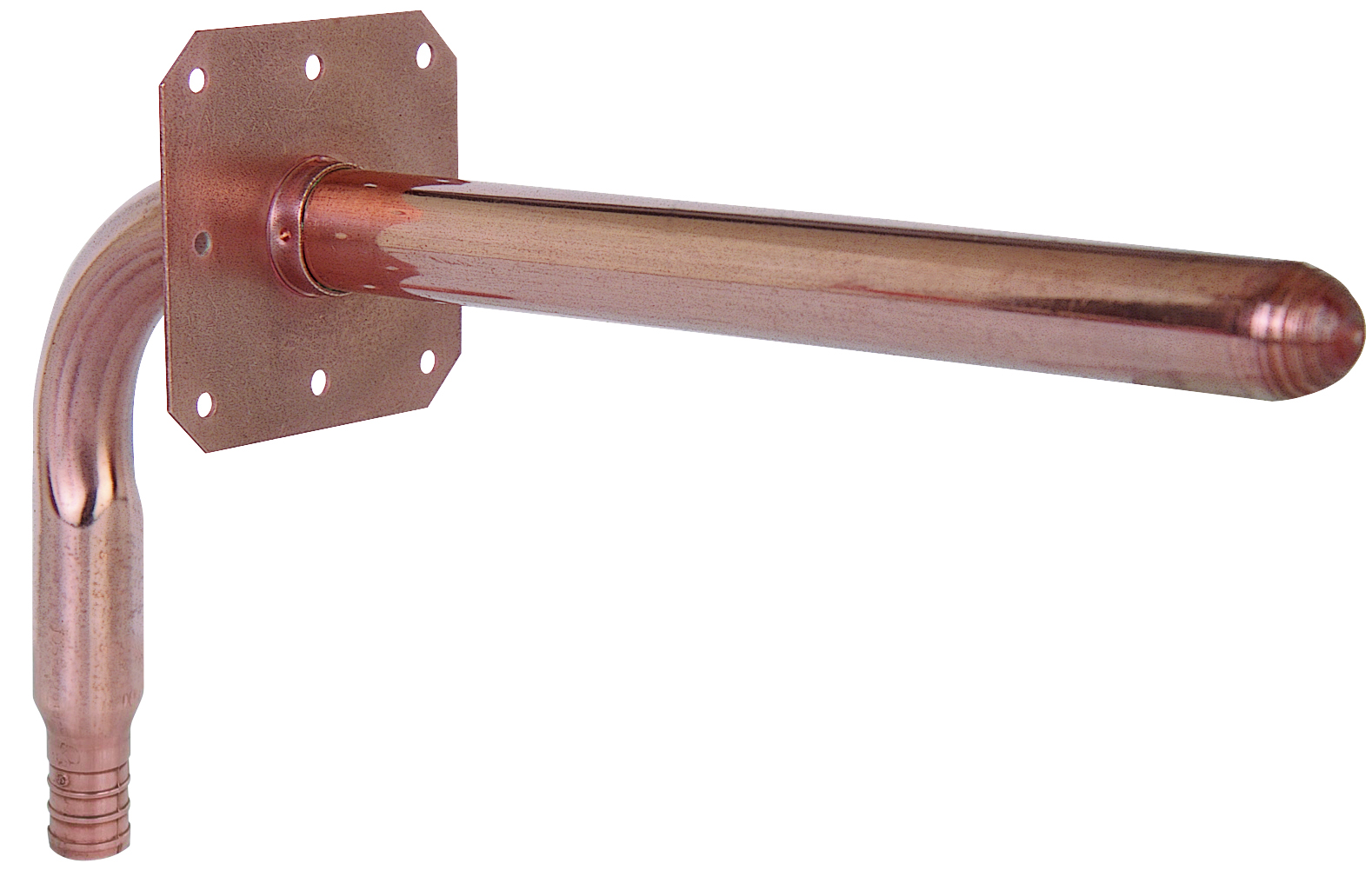

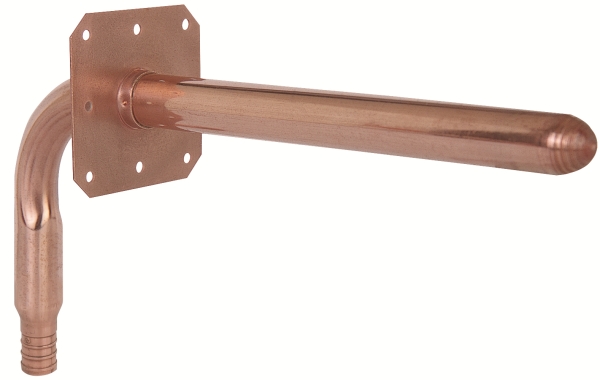

Square O Strap - 1/2'' F1807, 3-1/2'' × 8'' w/Strap
ASTM F1807 Preformed Copper & Valves

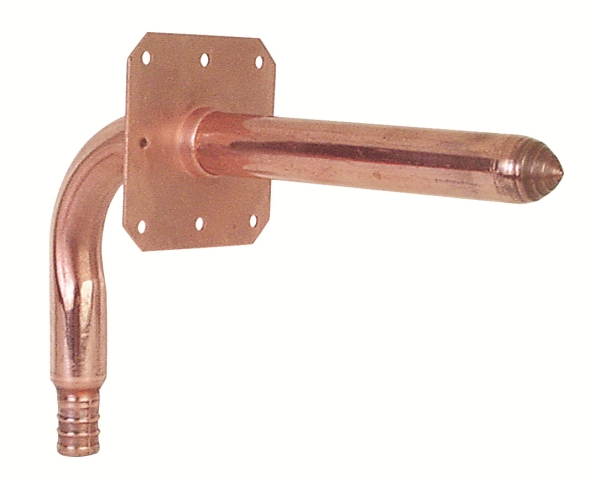

F1807 Stub Out Elbow
- • Combines easy adapting of copper stub outs with easy installation of PEX system
- • Square O Straps affix easily to the Edge bracket or any backing board to provide solid installations
- • Integral square strap attaches to bracket or stud for solid installations
- • Combines versatility of copper stub outs with easy installation of PEX system
- • Type L copper tube - Accepts sweat, push-fitting and compression valves
- • ASTM - F1807, CSA - B137.5, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
Product Information
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | F1807 |
| Connection 2 Size | 1/2 IN |
| Connection 2 Type | Closed |
| Height | 3-1/2 IN |
| Length | 8 IN |
| Square Strap? | Yes |
| Type | Stub Out Elbow |
No finish installation documents available for this product.
